NEOS

The compact, robust and reliable charger, designed to withstand the most extreme conditions.

  • 12–80 V
  • IP66
  • Extreme Waterproof
  • Shocks and vibrations

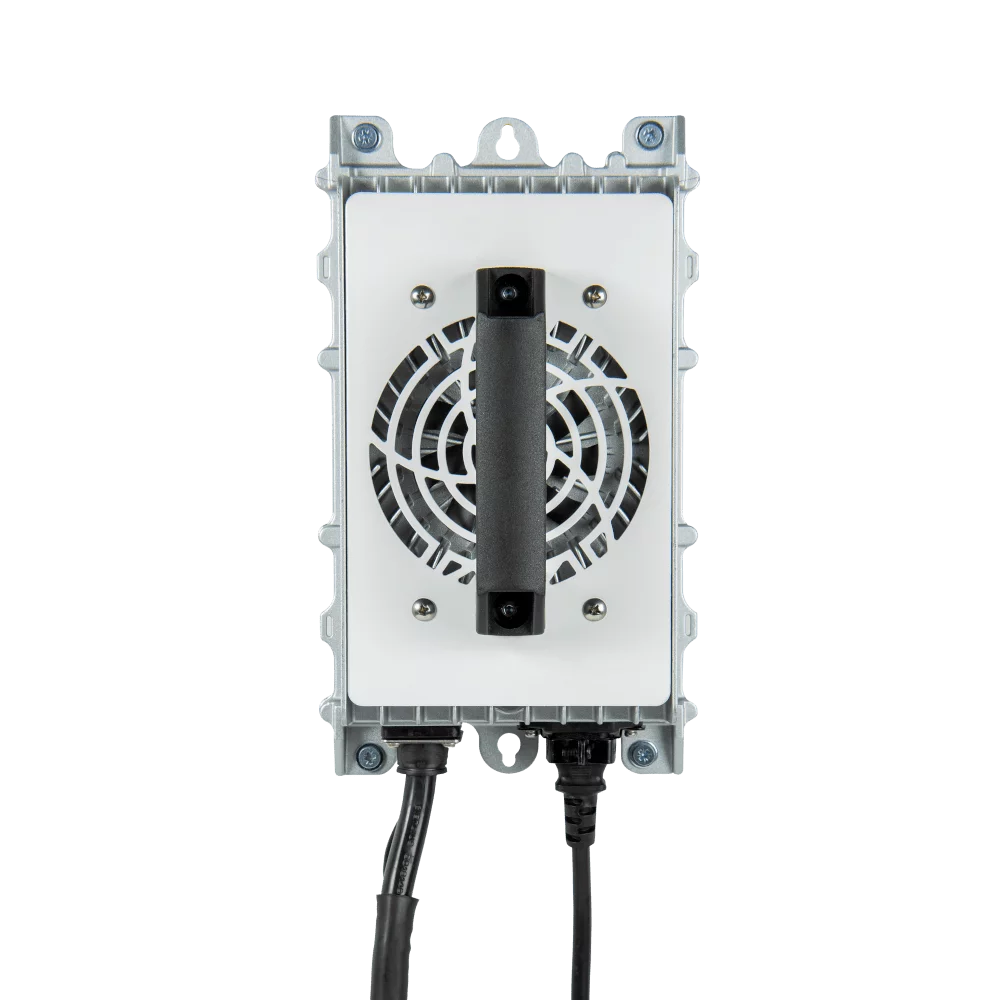

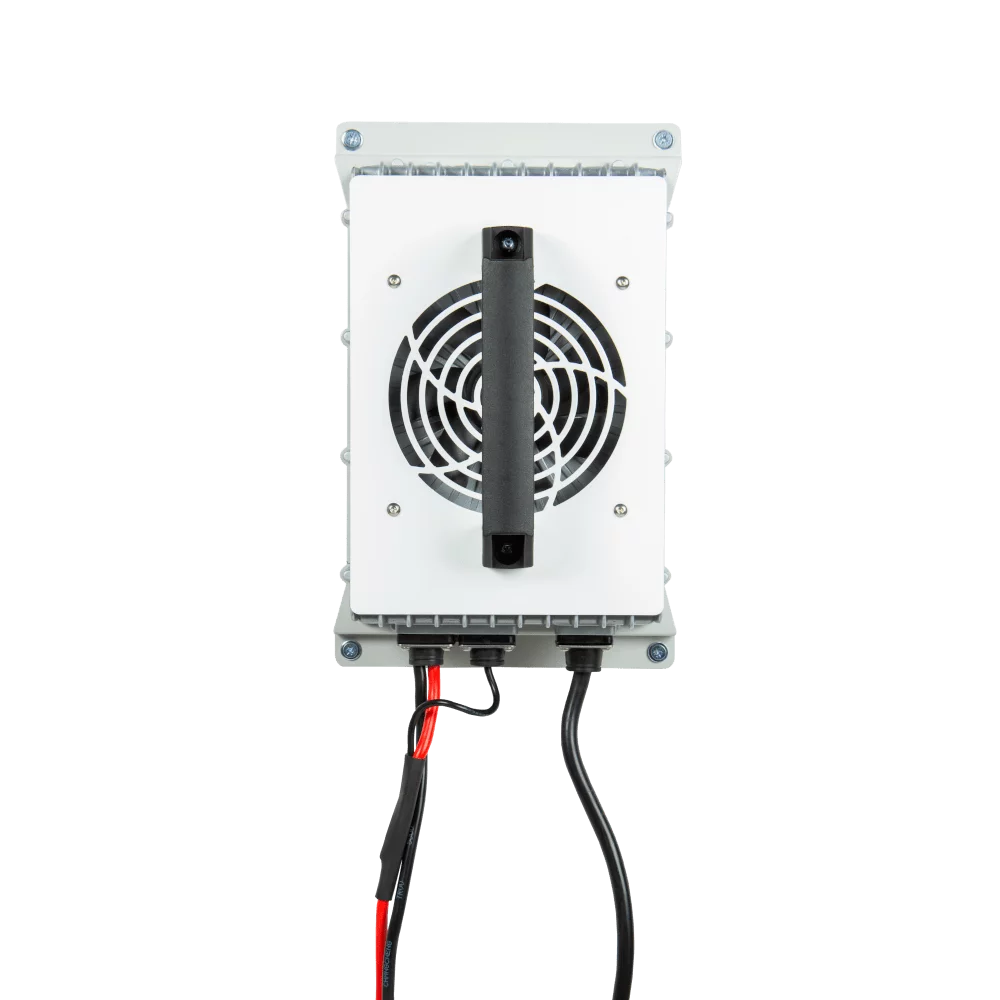

NEOS charger

Features

NEOS battery charger features

NEOS is TCE Group’s compact, waterproof industrial battery charger, designed and made in Borgo Veneto (PD), Italy. It charges batteries from 12 to 80 V, has IP66 protection with Extreme Waterproof technology, accepts an input supply from 96 to 265 Vac and reaches 94% efficiency with a 0.99 power factor.

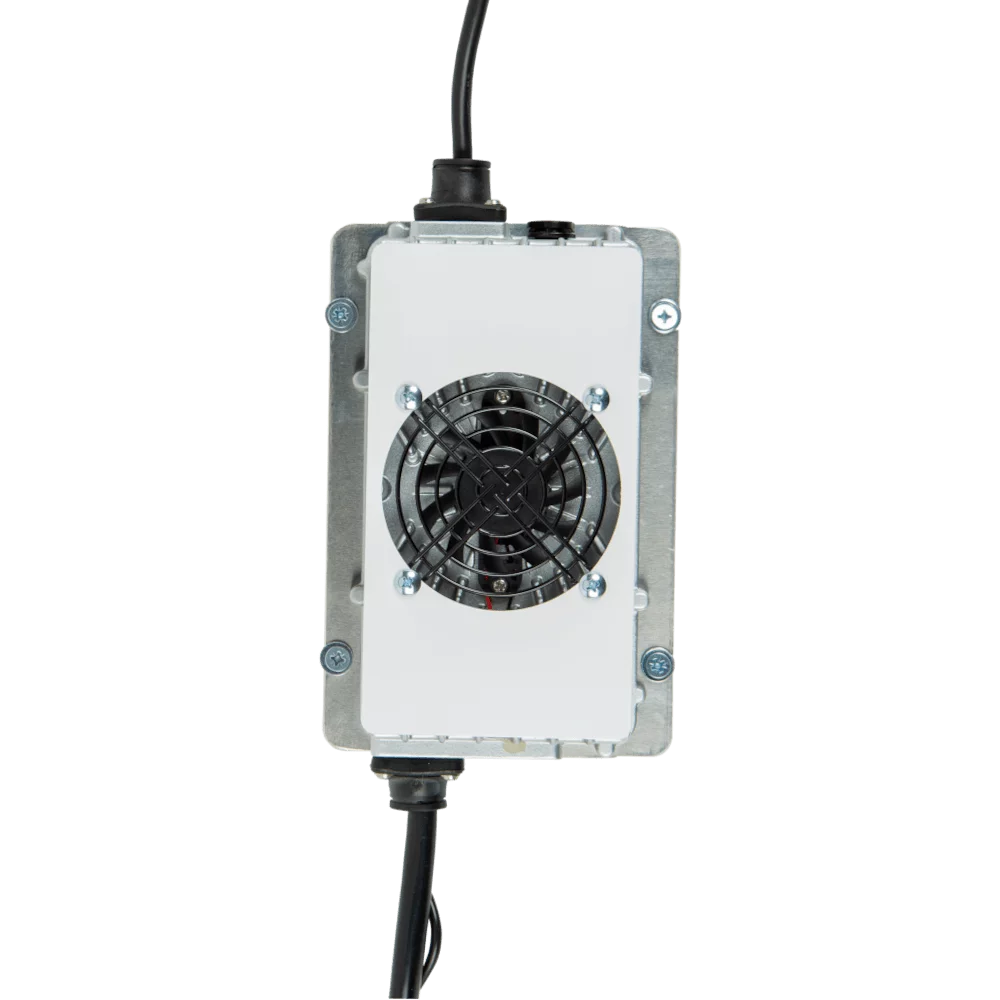

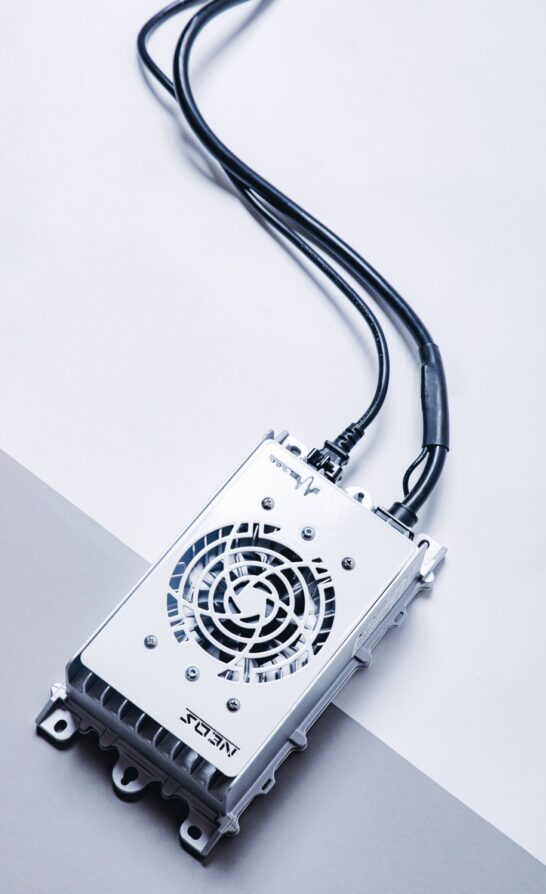

Detail of the NEOS waterproof battery charger

Extreme Waterproof

IP66 protection against water, shocks and vibrations

Thanks to IP66 protection and Extreme Waterproof technology, NEOS is designed to withstand the most extreme conditions, including shocks, vibrations and immersion.

It is compact, easy to use and ready to work straight away.

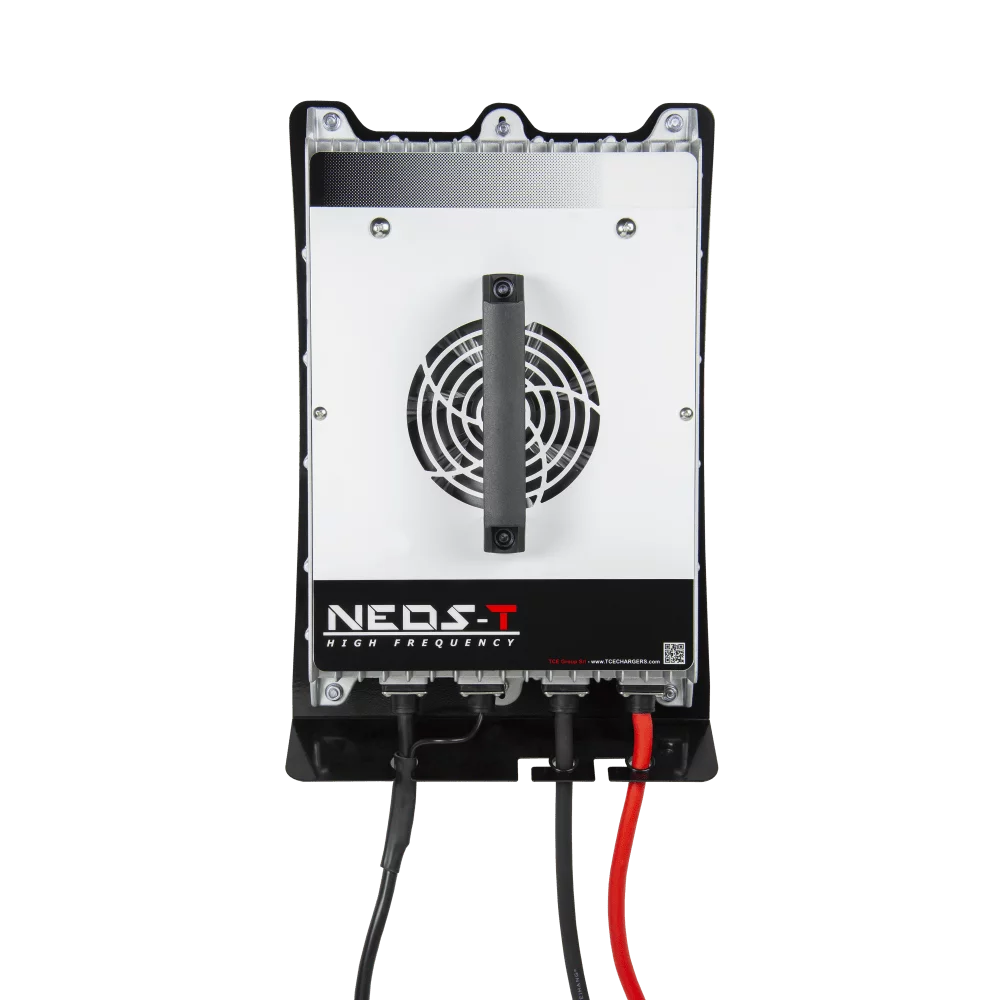

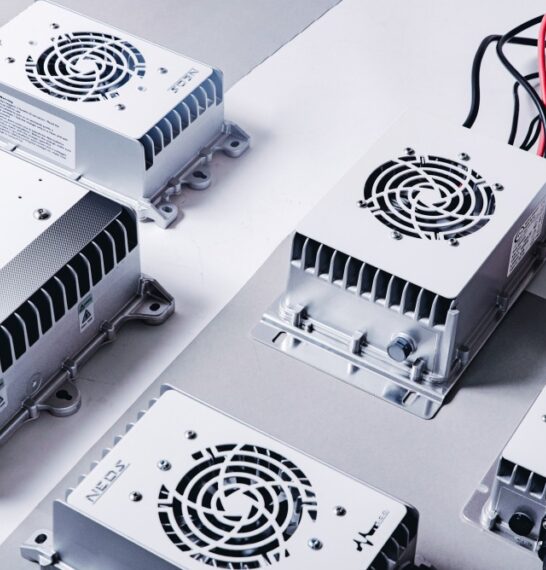

NEOS charger with resonant technology

Efficiency

94%

Eco-friendly power

NEOS resonant technology reaches 94% energy efficiency and a 0.99 power factor.

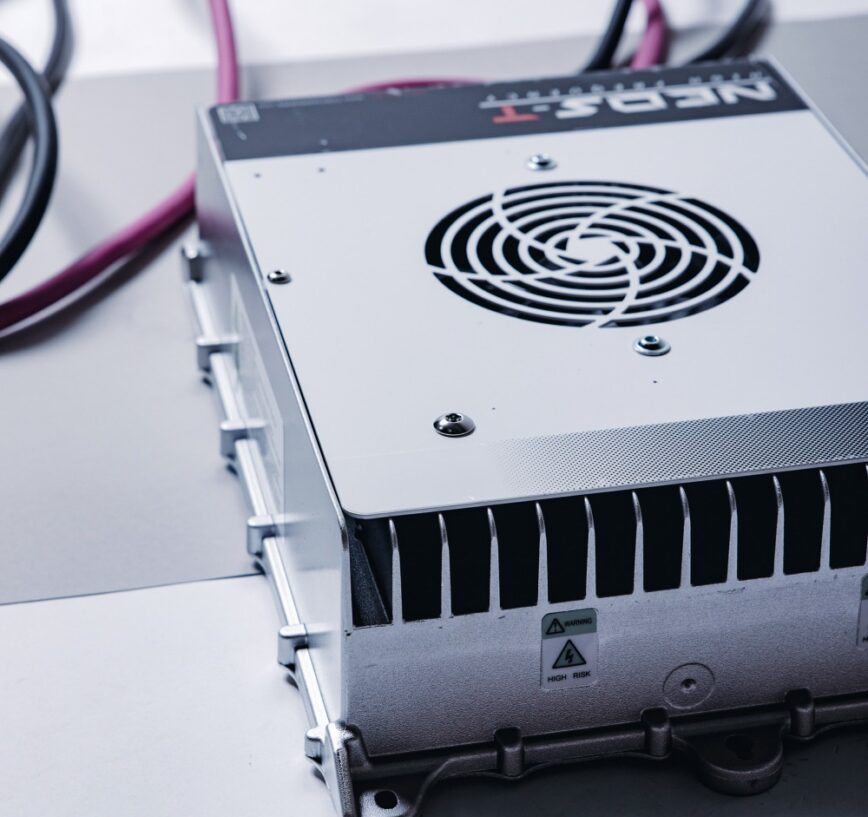

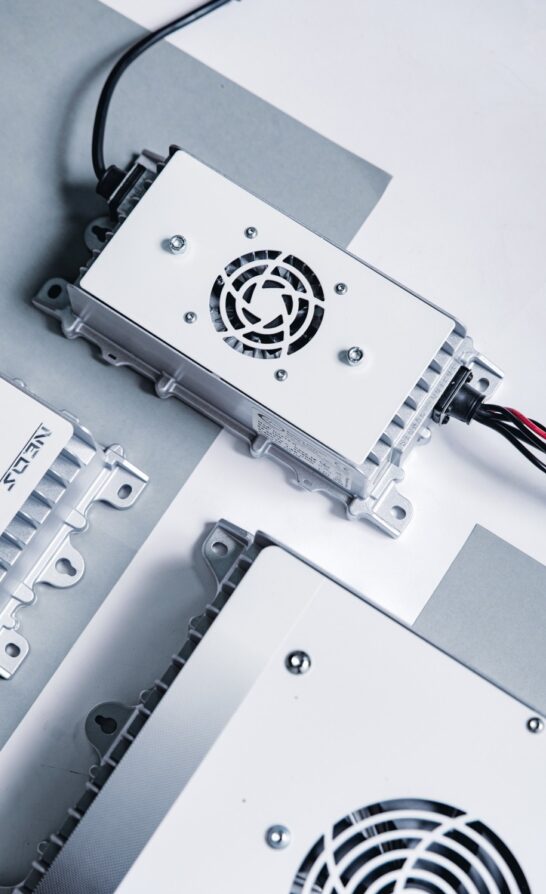

NEOS charger in use

Global adaptability

From 96 to 265 Vac, in every country

Whether you are in Europe, America or Asia, NEOS adapts to different mains voltages thanks to its wide 96–265 Vac input supply.

It prevents overloads at power-on and handles voltage fluctuations on its own, for stable and safe operation.

Up close

NEOS up close

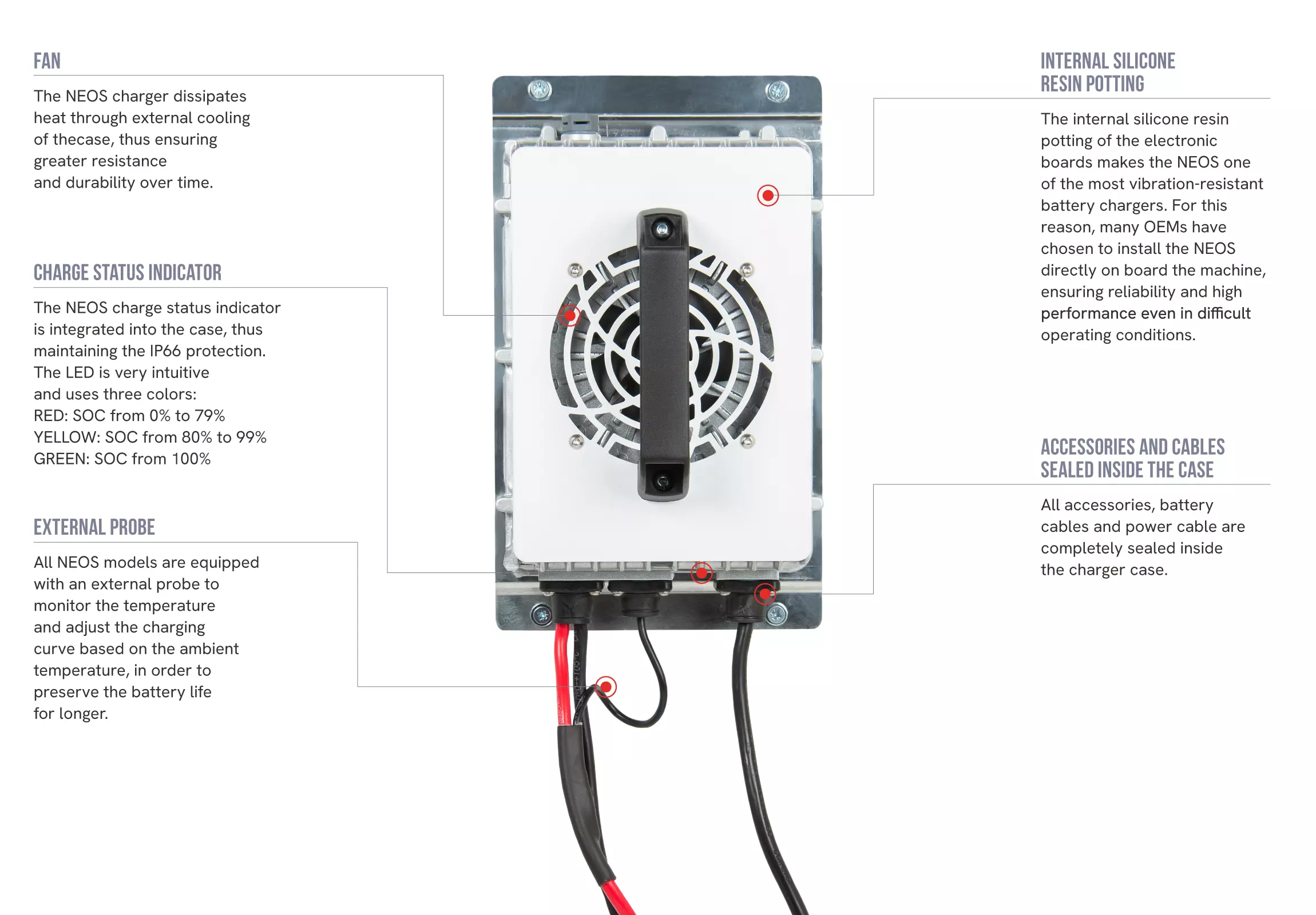

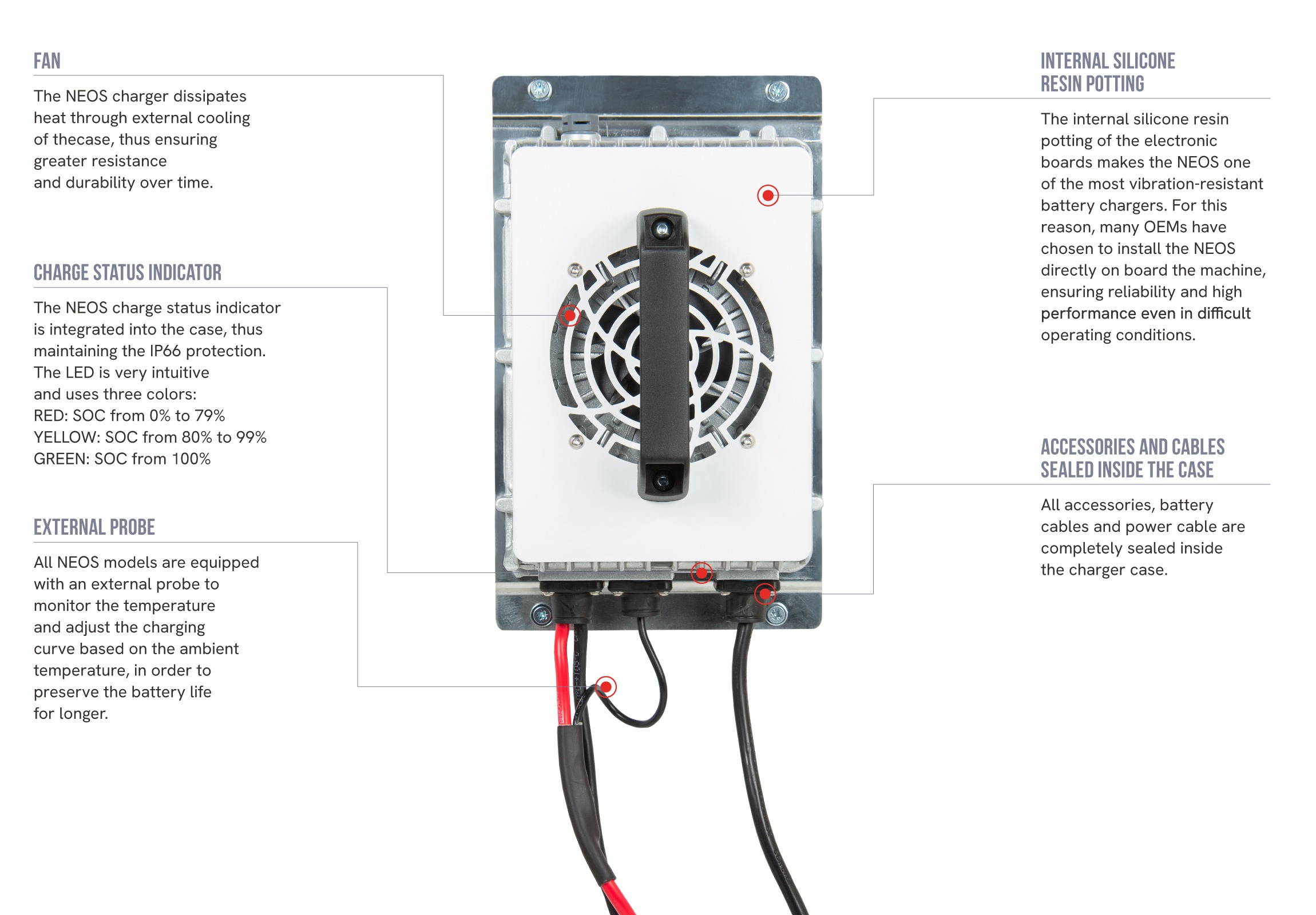

NEOS battery charger, front view, with fan, charge indicator and sealed cables

The circuit boards are potted in silicone, so NEOS stands up very well to vibration and many OEMs mount it directly on board their machines.

NEOS dissipates heat through external cooling of the case, for greater resistance and a longer working life.

It is built into the case, so the IP66 protection stays intact. The LED uses three colours. Try them:

Red: charge from 0% to 79%

Accessories, battery cables and the power cable are fully sealed inside the case.

Every NEOS model has an external probe that measures the temperature and adapts the charging curve to the surroundings, so the battery lasts longer.

NEOS Series Models

NEOS charger model 1200 BG
1200 BG
NEOS charger model 3000 BG
3000 BG
NEOS charger model Module 0
Module 0
NEOS charger model Module 1
Module 1
NEOS charger model Module 3C
Module 3C
NEOS charger model Module 3E
Module 3E
NEOS charger model Module 4C
Module 4C
NEOS charger model Module 5
Module 5
NEOS charger model Module 7
Module 7

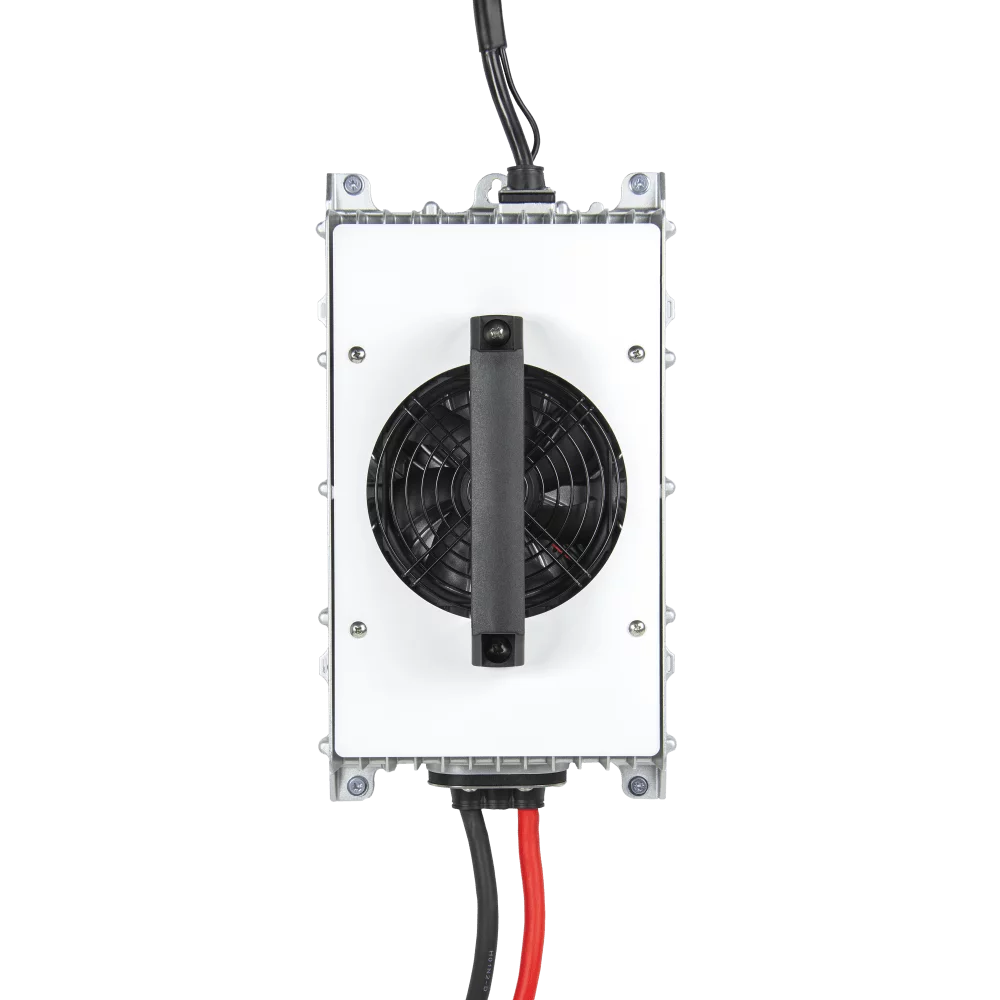

NEOS charger model Module 8
Module 8

FAQ

NEOS frequently asked questions

What is the NEOS battery charger?

NEOS is TCE Group's compact, waterproof industrial battery charger, designed and made in Borgo Veneto (PD), Italy. It charges batteries from 12 to 80 V and has IP66 protection with Extreme Waterproof technology.

Is NEOS waterproof?

Yes. With IP66 protection and Extreme Waterproof technology, NEOS is designed to withstand the most extreme conditions, including immersion.

Does NEOS work with mains power in other countries?

Yes. Its 96–265 Vac input supply lets NEOS adapt to different mains voltages in Europe, America and Asia, handling voltage fluctuations on its own.

How efficient is NEOS?

Thanks to its resonant technology, NEOS reaches 94% energy efficiency and a 0.99 power factor.

Which battery voltages does NEOS support?

The NEOS series covers voltages from 12 to 80 V.

Which models are in the NEOS series?

The range includes 1200 BG, 3000 BG and modules 0, 1, 3C, 3E, 4C, 5, 7 and 8.

How do I choose the right NEOS model?

Tell us voltage, current and battery type in the form at the bottom of the page: we will suggest the most suitable NEOS model.
